Product Details
260.HQCS-J21(4610)
|
Service On...
 Service 1

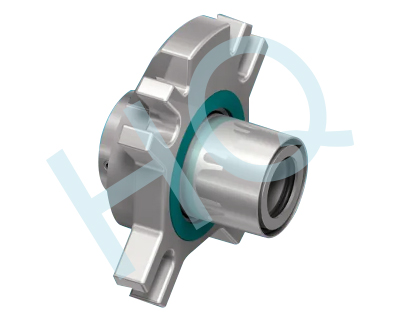

260.HQCS-J21(4610)

Type： Single Cartridge Seal
Replacement： Crane 4610
Temperature： -30℃ to +205℃
Pressure： ≤2.8Mpa
Speed： ≤25m/s
Material： Q1,Q2,U2,T,V,M1,F,G,M

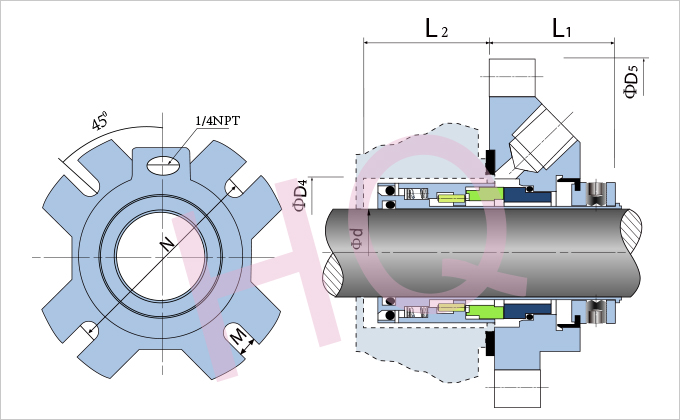

Product Details




d

(mm)

D4
D5
L2
L1
N
M
Min
Max
Min
Min
Max
24
40.00
49.2
104.8
30
34.5
66.7
95.3
11.1
25
41.00
49.2
104.8
30
34.5
66.7
95.3
11.1
28
44.00
52.4
108.0
30
34.5
69.9
98.4
11.1
30
46.00
55.6
111.0
30
34.5
73.0
101.6
11.1
32
47.60
55.6
111.0
30
34.5
73.0
101.6
11.1
33
49.00
58.7
114.3
30
34.5
73.0
101.6
11.1
35
50.80
58.7
114.3
30
34.5
77.8
104.8
11.1
38
57.15
63.5
127.0
31
35.5
87.3
114.3
14.3
40
60.00
63.5
127.0
31
35.5
87.3
114.3
14.3
43
63.00
66.7
133.4
31
35.5
90.5
120.7
14.3
45
63.50
66.7
133.4
31
35.5
90.5
120.7
14.3
48
66.70
76.2
139.7
31
35.5
98.4
127.0
14.3
50
69.80
76.2
139.7
31
35.5
98.4
127.0
14.3
53
73.00
84.1
146.0
31
35.5
111.1
130.2
17.5
55
73.00
84.1
146.0
31
35.5
111.1
130.2
17.5
58
79.40
90.5
152.4
31
35.5
117.5
136.5
17.5
60
79.40
90.5
152.4
31
35.5
117.5
136.5
17.5
63
82.60
98.4
158.8
34
35.5
123.8
142.9
17.5
65
88.90
98.4
158.8
34
36.0
123.8
142.9
17.5
70
95.00
98.4
158.8
34
36.0
123.8
142.9
17.5



d

(inch)

D4
D5
L2
L1
N
M
Min
Max
Min
Min
Max
1.000
1.615
1.940
4.125
1.18
1.36
2.62
3.75
0.437
1.125
1.730
2.060
4.250
1.18
1.36
2.75
3.87
0.437
1.250
1.875
2.190
4.370
1.18
1.36
2.87
4.00
0.437
1.375
2.000
2.310
4.500
1.18
1.36
3.06
4.12
0.437
1.500
2.250
2.500
5.000
1.22
1.40
3.43
4.50
0.563
1.625
2.360
2.500
5.000
1.22
1.40
3.43
4.50
0.563
1.750
2.500
2.625
5.250
1.22
1.40
3.56
4.75
0.563
1.875
2.625
3.000
5.500
1.22
1.40
3.87
5.00
0.563
2.000
2.750
3.000
5.500
1.22
1.40
3.87
5.00
0.563
2.125
2.875
3.310
5.750
1.22
1.40
4.37
5.12
0.563
2.250
3.000
3.310
5.750
1.22
1.40
4.37
5.12
0.689
2.375
3.130
3.560
6.000
1.22
1.40
4.62
5.37
0.689
2.500
3.250
3.875
6.250
1.42
1.40
4.87
5.62
0.689
2.625
3.500
3.875
6.250
1.34
1.420
4.87
5.62
0.689
2.750
3.740
3.875
6.250
1.34
1.420
4.87
5.62
0.689
