*Product advantages:
Used in steel works, the tolerated speed is higher than other materials.
*Range of adaptation:
Speed: n 1000 RPM or less
Temperature: t 100 ℃ or less
Pressure: 1.0 MPa or less
Media: water, air, brine, hydraulic oil
*Structure features:
HS-G swivel joints are widely used in the manufacture of cooling products. With the advantages of small
space, small component and small loss sensor, the use of advanced technology in the United States to seal
the manufacturing of more sophisticated, and the seal is selected for export components.

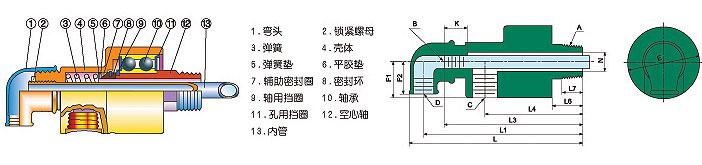

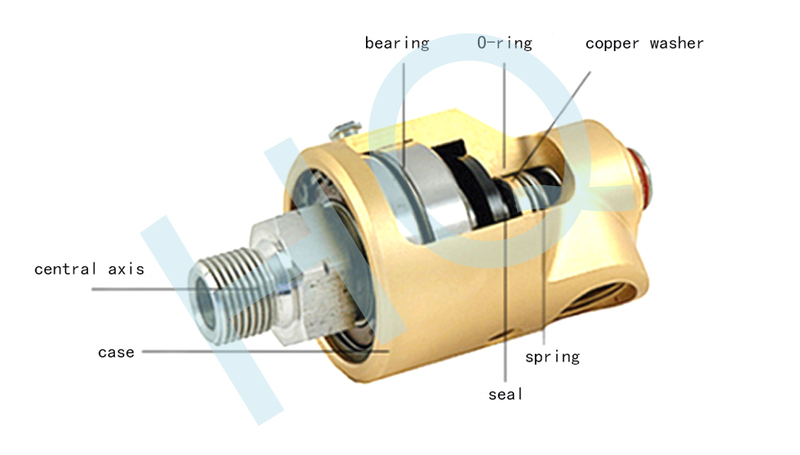

Structure-------------------------------------------------------------------------------------------------------------

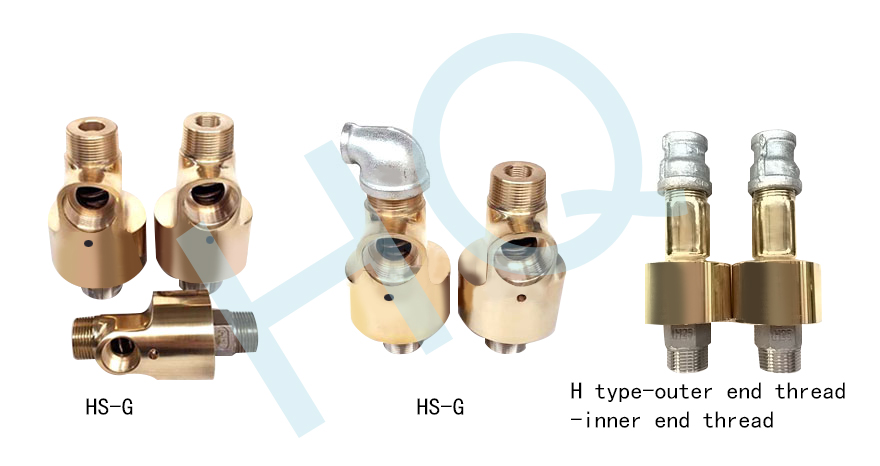

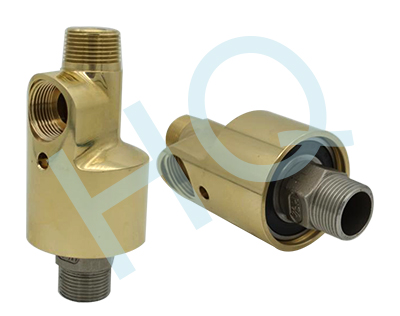

Product Show -------------------------------------------------------------------------------------------------

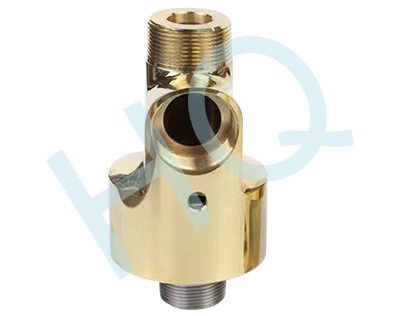

HS-G
HS-G Details------------------------------------------------------------------------------------
Size (mm) | Type | A | B | C | D | E | F1 | F2 | K |
15 | HS-G15-6 | R1/2 | G1/8 | RC1/2 | RC1/2 | 55 | 28 | 25 | 15 |
20 | HS-G20-8 | R3/4 | G1/4 | RC3/4 | RC1/2 | 62 | 31 | 30 | 32 |
25 | HS-G25-10 | R1 | G3/8 | RC3/4 | RC1/2 | 74 | 37 | 33 | 26 |
32 | HS-G32-15 | R1-1/4 | G1/2 | RC1-1/4 | RC1/2 | 90 | 45 | 38 | 32 |
40 | HS-G40-20 | R1-1/2 | G3/4 | RC1-1/2 | RC3/4 | 95 | 48 | 43 | 36 |
50 | HS-G50-25 | R2 | G1 | RC1-1/2 | RC1 | 122 | 61 | 51 | 46 |
65 | HS-G65-32 | R2-1/2 | G1-1/4 | RC2 | RC1-1/4 | 156 | 78 | 62 | 50 |
80 | HS-G80-40 | R3 | G1-1/2 | RC2-1/2 | RC1-1/2 | 160 | 80 | 70 | 50 |
|
Size (mm) | Type | L | L1 | L3 | L4 | L6 | L7 | N | |
15 | HS-G15-6 | 147 | 135 | 125 | 90 | 30 | 17 | 12 | |
20 | HS-G20-8 | 170 | 155 | 140 | 95 | 30 | 20 | 16 | |
25 | HS-G25-10 | 175 | 160 | 145 | 103 | 33 | 20 | 20 | |
32 | HS-G32-15 | 211 | 196 | 182 | 128 | 42 | 25 | 30 | |
40 | HS-G40-20 | 232 | 210 | 185 | 130 | 40 | 25 | 36 | |
50 | HS-G50-25 | 300 | 278 | 255 | 182 | 60 | 35 | 48 | |
65 | HS-G65-32 | 350 | 325 | 295 | 211 | 68 | 40 | 62 | |
80 | HS-G80-40 | 383 | 353 | 286 | 231 | 90 | 35 | 75 | |

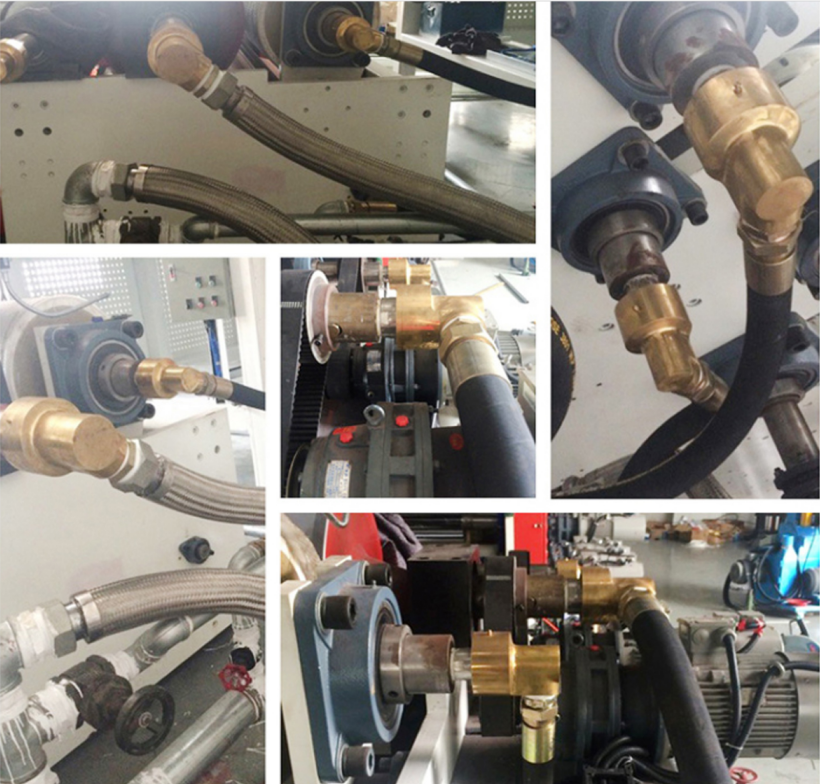

Application Case---------------------------------------------------------------------------------------
